High-Precision MHRS-150 Hardness Tester for Accurate Rockwell Hardness Measurement in Multiple Industries

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250324143143/Rockwell-Hardness-TesterMHRS-150-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250324143143/Rockwell-Hardness-TesterMHRS-150-2.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time.
Product Specifications Reference
Test force
60、100、150kgf 588.4、980.7、1471N
Measuring range
20-88HRA,20-100HRB,20-70HRC
Max. allowable height of the test piece
210mm
The distance from the center of the indenter to the machine wall
165mm
Hardness Resolution
0.1HR

Payment method

COMM
COMM
Product Details
Product Introduction

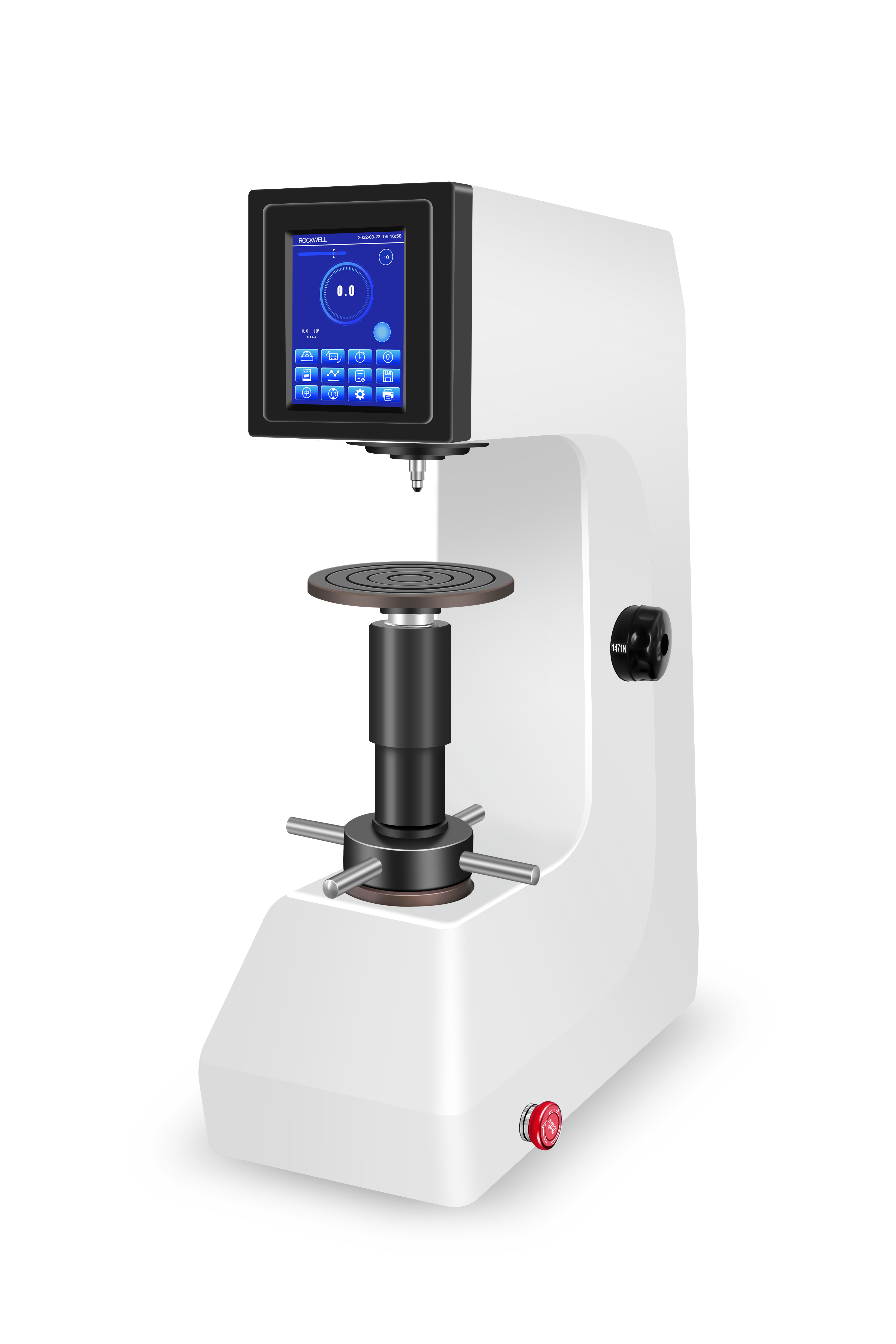

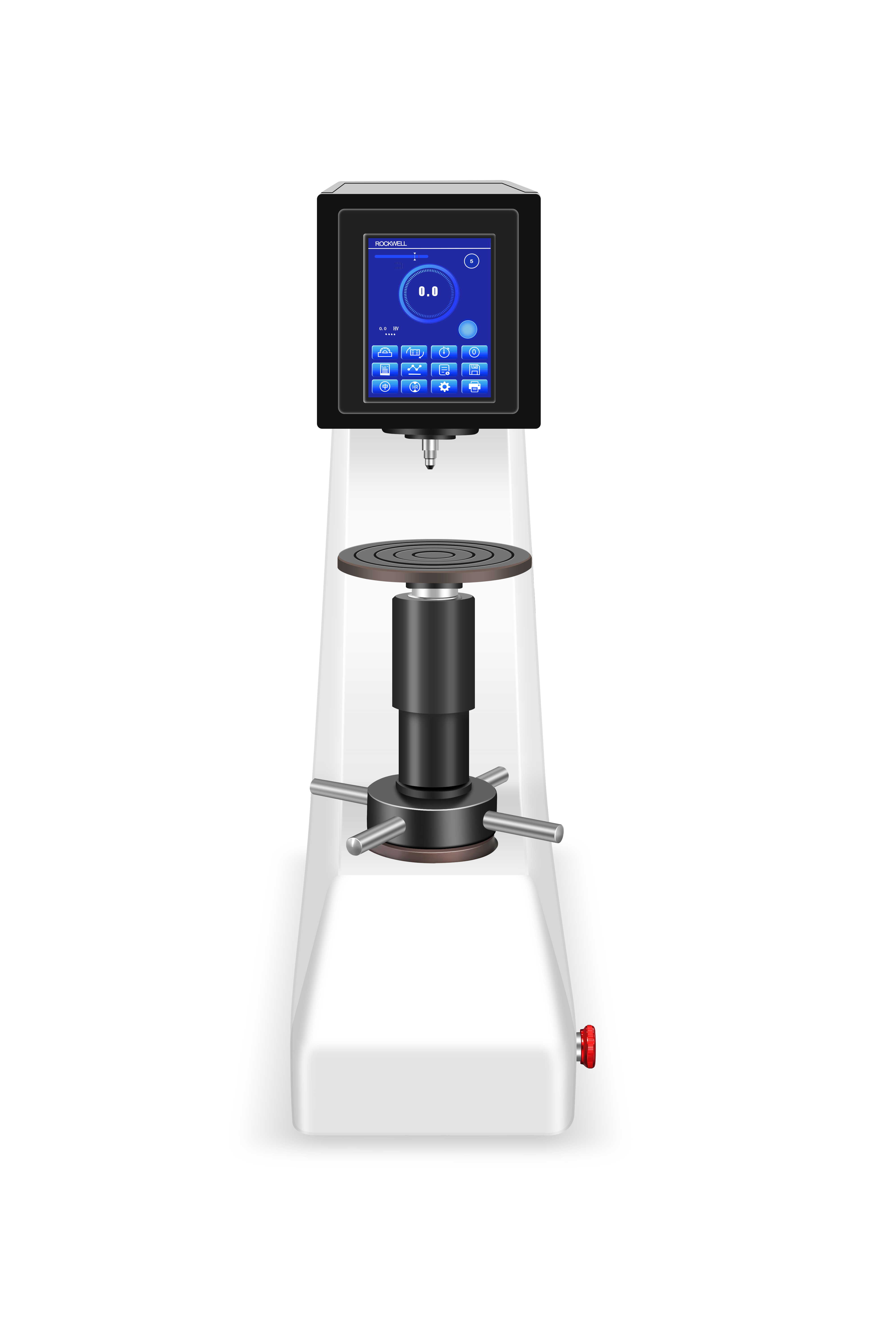

The MHRS - 150 Hardness Tester, offered by Laizhou Jincheng Industrial Equipment Co., Ltd. under the 'Jincheng' brand, is a top - notch product for material hardness testing. It's a key tool to assess the quality of metal materials and product parts. This tester can accurately determine the Rockwell hardness of ferrous metals, non - ferrous metals, and non - metallic materials. With its wide application range, it's ideal for measuring the Rockwell hardness of heat - treated materials like quenched and tempered ones. The motor controls the loading, holding, and unloading of the test force, eliminating manual operation errors. Its accuracy meets GB/T230.2 - 2018, ISO6508 - 2, and American ASTM E18 - 16 - M standards, ensuring reliable and precise results for your testing needs.
Advantages and features
1. Wide measurement range: It can measure Rockwell hardness from 20 - 88HRA, 20 - 100HRB, and 20 - 70HRC, suitable for various materials.
2. Automated operation: The motor - controlled test force process reduces human error and improves accuracy.
3. High - precision: The hardness resolution is 0.1HR, providing accurate and detailed results.
4. International standards compliant: It meets multiple international standards, ensuring global acceptance and reliability.
Application Scenario
This product is suitable for mechanical manufacturing, metallurgy, chemical, and power industries. It also serves universities and research institutions. In terms of markets, it has been well - received in Russia, Southeast Asia, and Europe. Whether you are a large - scale metallurgical enterprise or a scientific research unit, the MHRS - 150 Hardness Tester can meet your material hardness testing requirements.
Product Parameters
Power supply: AC220V,50Hz
Dimensions: 220*510*694mm
Net weight: 98kg
Type Specification Unit Quantity
Diamond Rockwell Indenter Pc 1
Ball indenter Φ1.5875mm Pc 1
Test bench Big flat, small flat, V-shape Pc 3
Hardness block HRA、HRB、HRC Pc 5
Power cable Pc 1
Standard weight A、B、C Pc 3
Dust-proof plastic cover Pc 1
Product certificate Sheet 1
Instruction Manual Sheet 1
