High - Performance Digital Full Rockwell Hardness Tester HRSS - 150 for Precise Hardness Testing in Global Markets

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250326140909/Rockwell-Hardness-TesterHRSS-150-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250326140909/Rockwell-Hardness-TesterHRSS-150-2.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time.
Product Specifications Reference
Rockwell Test force
60、100、150kgf 588.4、980.7、1471N
Surface Rockwell Test Force
15、30、45kgf 147.1、294.2、441.3N
Indenter Specifications
Diamond Rockwell indenter (cone)ф1.588mm tungsten carbide alloy spherical indenter
Hardness reading
Large touch screen display
Measuring ruler
HRA;HRB;HRC;HRD;HRE;HRF;HRG;HRH;HRK;HRL;HRM;HRP;HRR;HRS;HRV ;HR15N;HR30N;HR45N;HR15T;HR30T;HR45T; HR15X;HR15Y;HR30X;HR30Y;HR45X;HR45Y
Convert ruler
HRA;HRB;HRC;HRD;HRF;HV;HK;HBW;HBS; HR15N;HR30N;HR45N;HR15T;HR30T;HR45T

Payment method

COMM
COMM
Product Details
Product Introduction

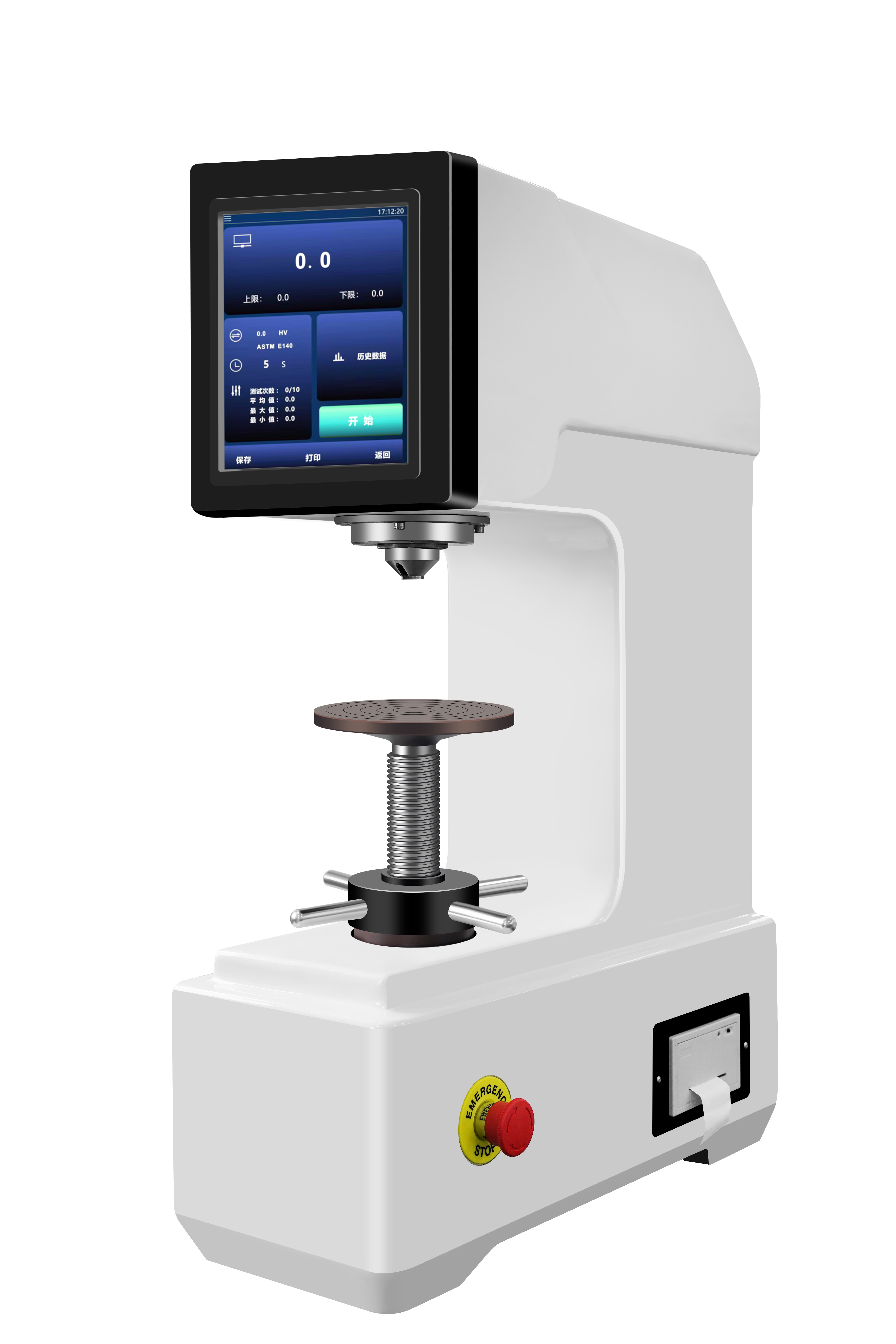

The Digital Full Rockwell Hardness Tester HRSS - 150, provided by Laizhou Jincheng Industrial Equipment Co., Ltd., is a top - notch product under the Jincheng brand. This electronically applied hardness tester meets different Rockwell hardness testing requirements. With a novel appearance, complete functions, and convenient operation, it features a clear and intuitive display and stable performance. The touch - screen interface allows for easy operation, and it comes with electric loading and sensor force closed - loop control, eliminating the need for installation and debugging. The system can automatically convert the unit of the full hardness scale, and its accuracy complies with GB/T230.2 - 2018, ISO6508 - 2, and American ASTM E18 standards, ensuring reliable and accurate test results.
Advantages and features
1. Novel appearance and complete functions, providing a great user experience.
2. Touch - screen interface for simple and convenient operation, ready to use.
3. Electric loading and sensor force closed - loop control, no installation and debugging required.
4. Automatic unit conversion of the full hardness scale, with high accuracy meeting international standards.
5. Built - in printer and RS232 interface for easy data output.
Application Scenario
This product is widely applicable in various industries such as mechanical manufacturing, metallurgy, chemical, and power. It is also suitable for use in colleges, universities, and research institutions. It serves markets in Russia, Southeast Asia, Europe, the Middle East, and North America, meeting the hardness testing needs of different customers around the world.
Product Parameters
Specimen allowable upper limit height: 200mm
Distance from the middle of the indenter to the machine wall: 160mm
Resolution: 0.1HR
Data output: Built-in printer and RS232 interface
Power supply: AC220V,50Hz
Dimensions: 510*290*730mm
Weight : 95KG
Type Specification Unit Quantity
Digital Rockwell Hardness Tester HRSS-150 Set 1
Diamond Cone Indenter Pc 1
Φ1.588mm steel ball indenter Pc 1
Small flat workbench Pc 1
Large flat workbench Pc 1
V-shaped table Pc 1
Standard hardness block Pc 9
232 cable Pc 5
Screwdriver Pc 1
