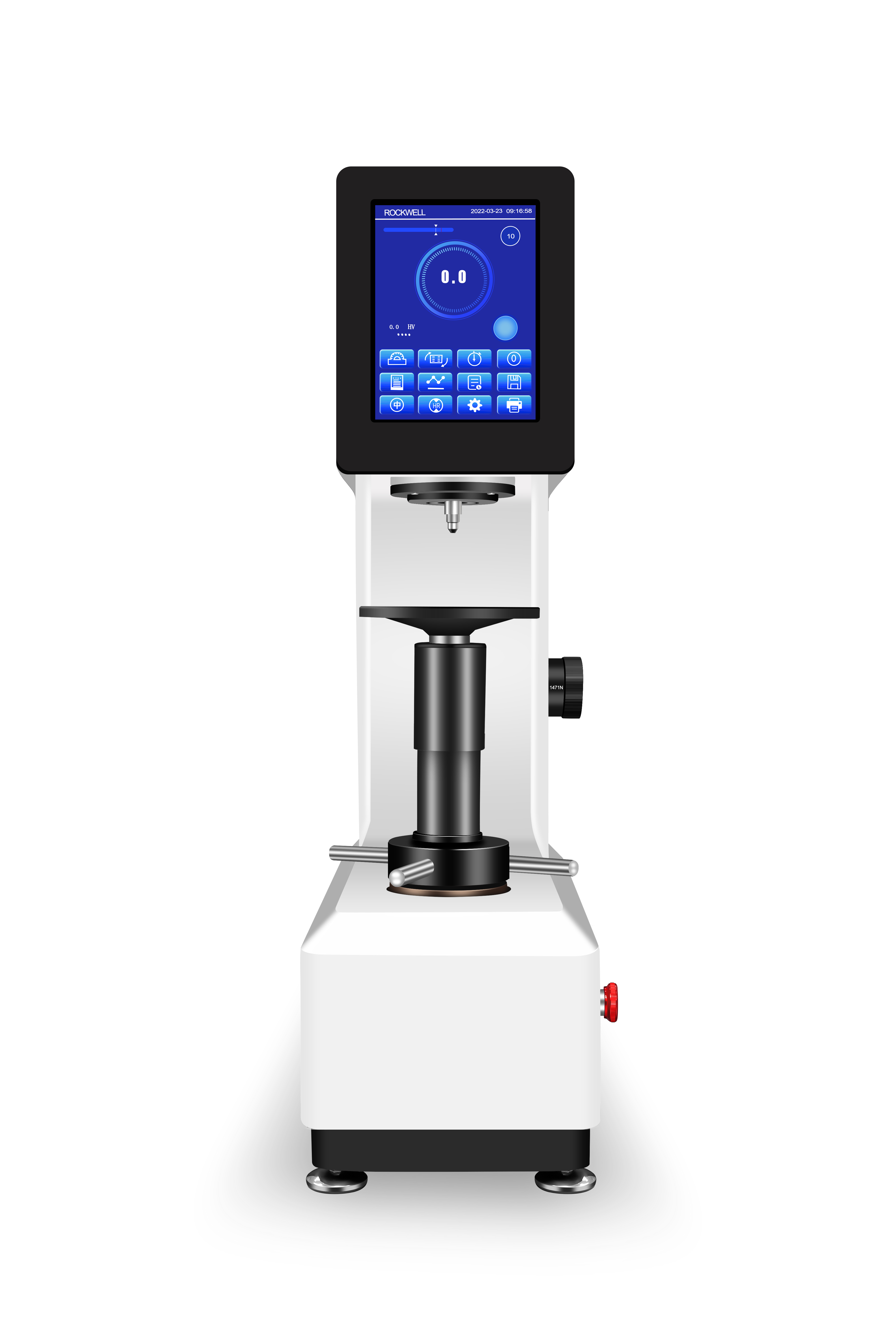

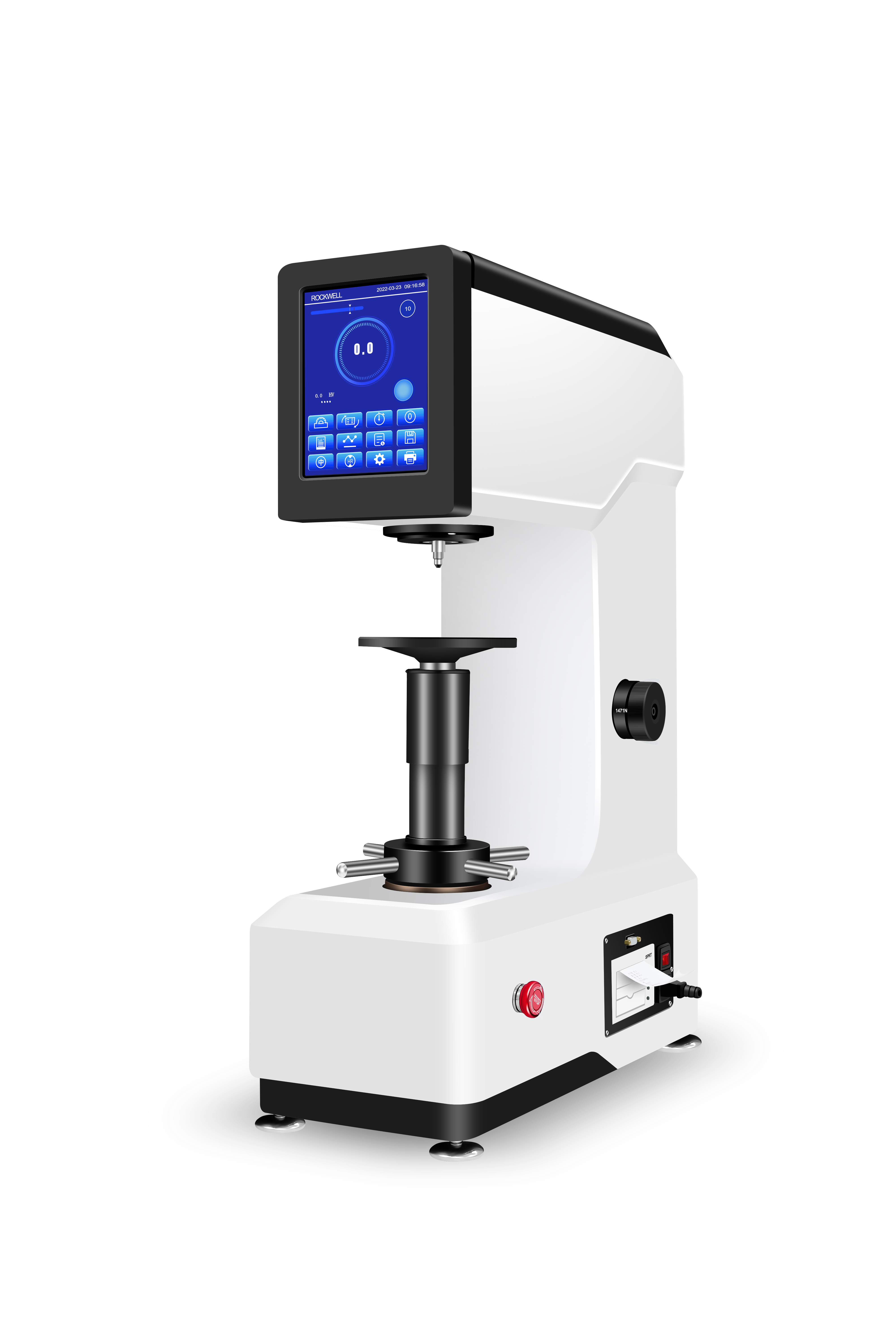

Jincheng brand high quality 8MHRS - 150H digital Rockwell hardness tester, suitable for high-precision hardness testing of various materials

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250326102050/Rockwell-Hardness-Tester8MHRS-150H-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250326102050/Rockwell-Hardness-Tester8MHRS-150H-2.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time.
Product Specifications Reference
Initial test force
10kgf 98.07N
Measuring range
20-88HRA,20-100HRBW,20-70HRC
Test force
60、100、150kgf 588.4、980.7、1471N
Indenter Specifications
Diamond Rockwell indenter, ф1.588mm ball indenter
Hardness reading
Touch screen to get hardness value
measuring ruler
HRA、HRB、HRC、HRD、HRE、 HRF、 HRG、 HRH 、HRK 、HRL 、HRM、 HRP、 HRR、HRS 、HRV、HR15N 、HR30N、 HR45N 、HR15T 、HR30T、 HR45T

Payment method

COMM
COMM
Product Details
Product Introduction
The 8MHRS - 150H digital Rockwell hardness tester launched by Jincheng brand of Laizhou Jincheng Industrial Equipment Co., Ltd. is a cutting-edge product in the field of hardness measurement. It is suitable for a variety of materials, such as quenched, tempered, annealed materials and chilled castings. The hardness tester is equipped with a new 8-inch high-resolution color touch screen with a Chinese interface, which is easy and convenient to operate. Its body is formed by a casting process and has undergone long-term aging treatment, and the deformation is minimal during long-term use. The application, maintenance and removal of the test force are all automated to eliminate human errors. It can accurately display the hardness value digitally and is equipped with a printer to output data. It complies with international standards such as GB/T230.2 and JJS Z2245, providing reliable performance for global customers.
Advantages and features
1. Brand new high-resolution 8-inch color touch screen with Chinese interface, easy to understand and operate.
2. The fuselage adopts casting technology and long-term aging treatment, with minimal deformation after long-term use and strong adaptability to harsh environments.
3. High-quality car paint, strong scratch resistance, still bright as new after years of use.
4. The test force application, holding and removal are automated to eliminate human errors.
5. Automatically display the hardness value digitally to avoid reading errors, and also equipped with a printer to output data.
Application Scenario
This product is widely used in machinery manufacturing, metallurgy, chemical industry, electric power and other industries, and is also suitable for colleges and universities and scientific research institutions. The main markets include Russia, Southeast Asia, Europe, the Middle East and North America, providing services for customers who need to perform precise hardness tests on various materials.
Product Parameters
data output: Printer, RS232 interface
Max allowable height of the test piece: 210mm
The distance from the center of the indenter to the machine wall: 165mm
Hardness Resolution: 0.1HR
Paul time: 0~60s
power supply: AC220V,50Hz
Implementation standard: GB/T230.2、JJS Z2245、ASTME—10、EN-ISO6508
Dimensions: 220*510*694mm
net weight: 98kg
Type Specification Unit Quantity
Digital Rockwell Hardness Tester 8MHRS-150H Set 1
Drive U disk (optional) Pc 1
232 cable Pc 1
Small flat workbench Pc 1
Large flat workbench Pc 1
V-shaped table Pc 1
Standard hardness block Pc 5
Diamond cone indenter Pc 1
Φ1.588mm steel ball indenter Pc 1
Φ1.588mm steel ball Pc 5
Screwdriver Pc 1
