High Precision HYC-150 Rockwell Hardness Tester for Industrial Applications

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250328172449/Portable-hardness-testerHYC-150-1.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。
Product Specifications Reference
Rockwell initial test force
10 kgf
Rockwell total test force
60, 100, 150kgf 588.4, 980.7, 1471N
Measurement range
20-95HRA, 10-100HRBW, 20-70HRC;
Indication error
Conforming to GB/T 230.2
Repeatability error
Conforming to GB/T 230.2

Payment method

COMM
COMM
Product Details
Product Introduction

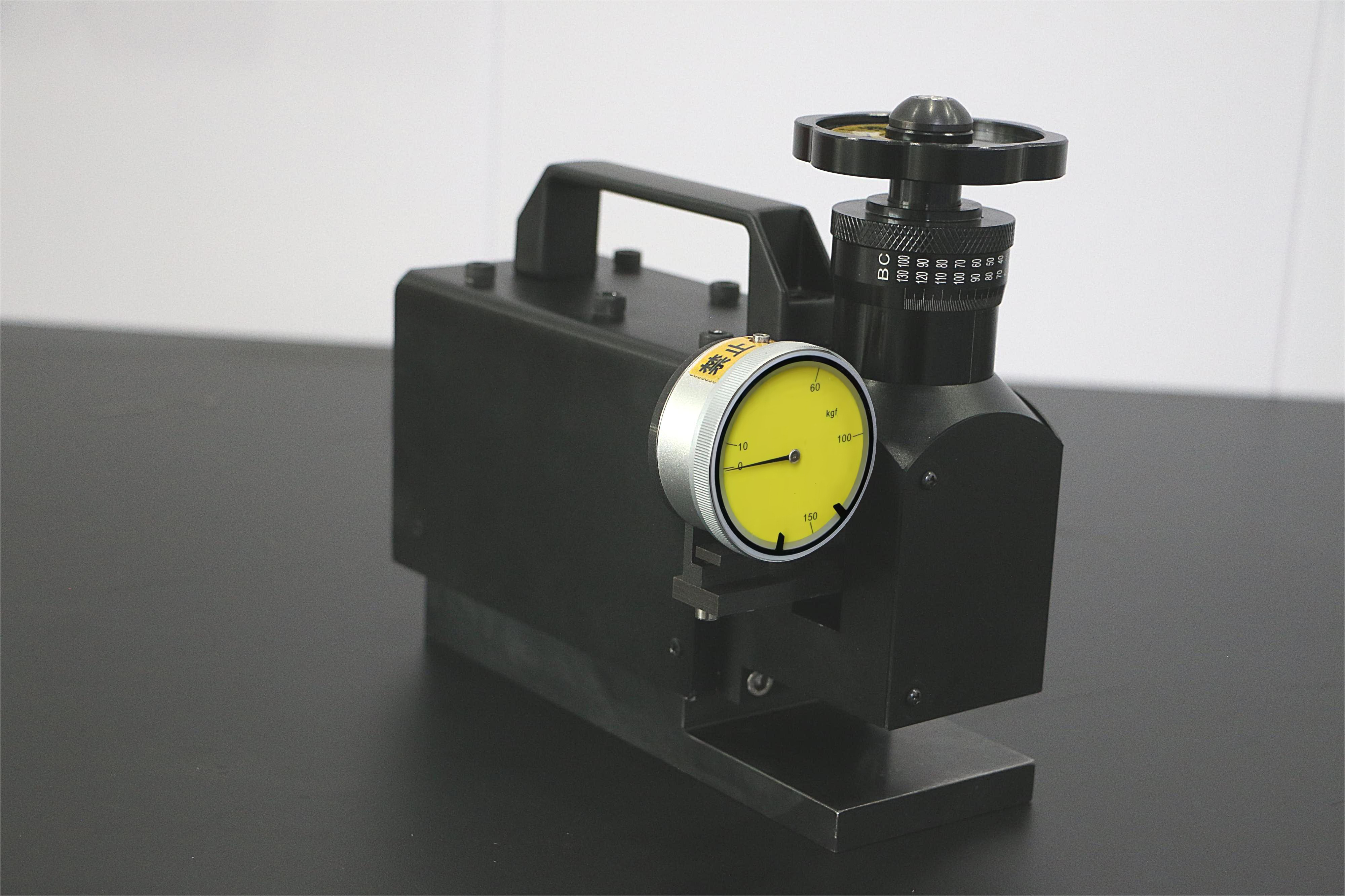

The HYC-150 Magnetic Suction Rockwell Hardness Tester, proudly presented by Lai Zhou Jin Cheng Industrial Equipment Co., Ltd., is a top - notch solution for accurate Rockwell hardness measurement. This tester strictly adheres to national standards GB/T 230.2 and international norms. It is versatile, suitable for both finished and semi - finished products, and can effectively test common metals such as steel, copper, aluminum, and hard alloys. With its single - handle magnetic switch, it offers user - friendly operation. The ability to observe the contact surface from multiple angles ensures high - precision results. The wide measurement range and excellent repeatability minimize human error. Its clear dial allows for easy reading of hardness values, and the stable test platform guarantees reliable performance. Whether for on - site work or laboratory use, the HYC - 150 combines practicality and economic efficiency, making it a must - have for quality control in various industries.
Advantages and features
1. Precise measurement: Ensures accurate Rockwell hardness values in line with national and international standards.
2. User - friendly: Features an intuitive single - handle magnetic switch for easy operation.
3. Wide applicability: Suitable for various metals and both finished and semi - finished products.
4. High repeatability: Reduces human error and secures consistent test results.
5. Clear readability: Equipped with a clear dial for easy viewing of hardness values.
6. Stable performance: Comes with a stable test platform for reliable operation.
Application Scenario
Mechanical manufacturing industry for quality control of metal parts.
Metallurgy industry to test the hardness of different metals and alloys.
Educational institutions for teaching and research purposes.
On - site quality inspection in industrial production environments.
Laboratories for in - depth material analysis.
Product Parameters
Hardness resolution: 1HR
Rockwell indenter: 120 ° diamond indenter, 1.588 mm hard alloy ball
Overall dimensions: 249×131×171(mm)
Net weight: 13KG
Type Specifications Unit quantity
main engine HYC-150 platform one
Diamond Rockwell indenter 120 ° only one
Ball pressure head Φ 1.588mm only one
Base iron individual one
Rockwell hardness standard block HRA, HRB, HRC high, HRC medium, HRC low block five
Product User Manual block one
Accessory box individual one
Packing list share one
