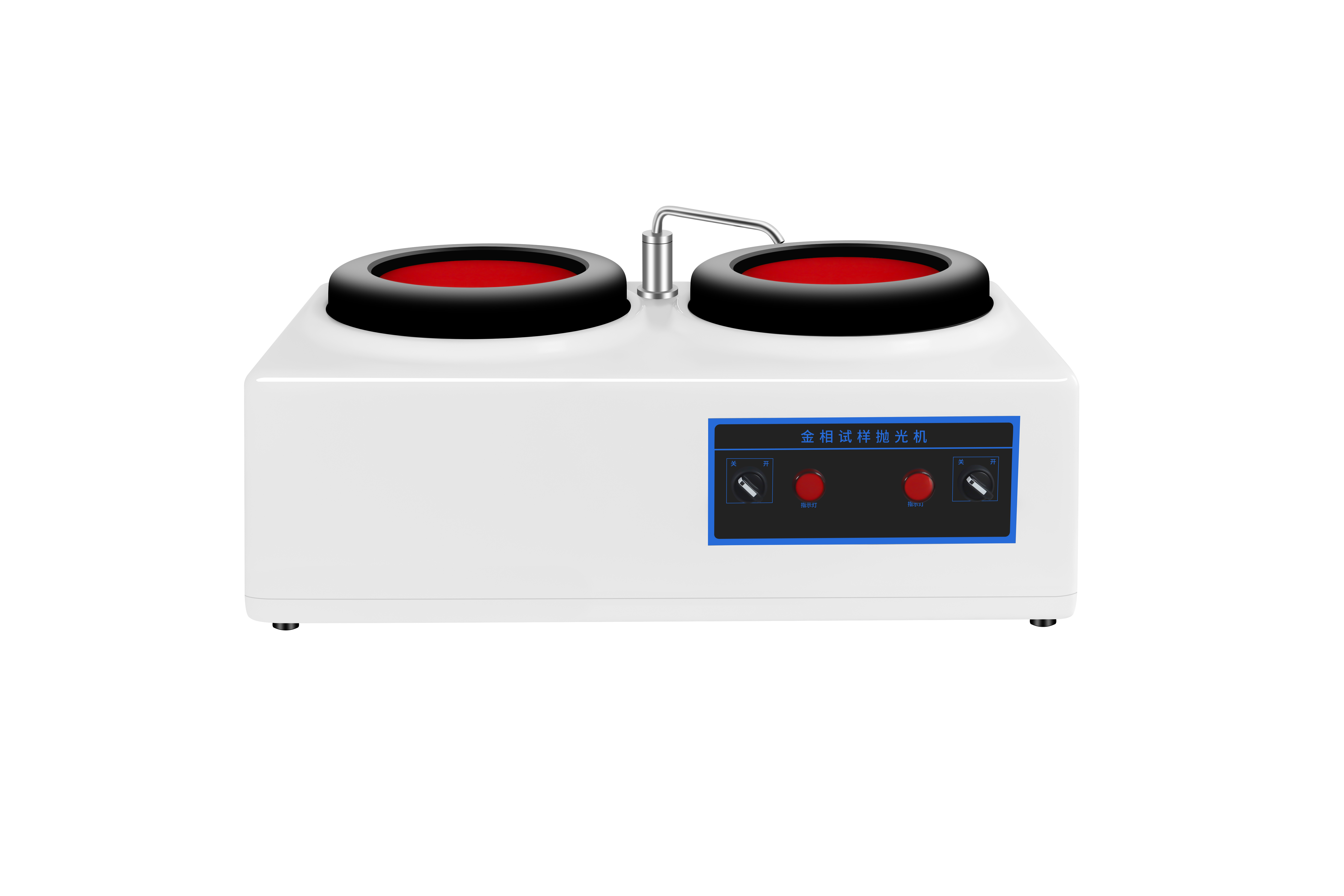

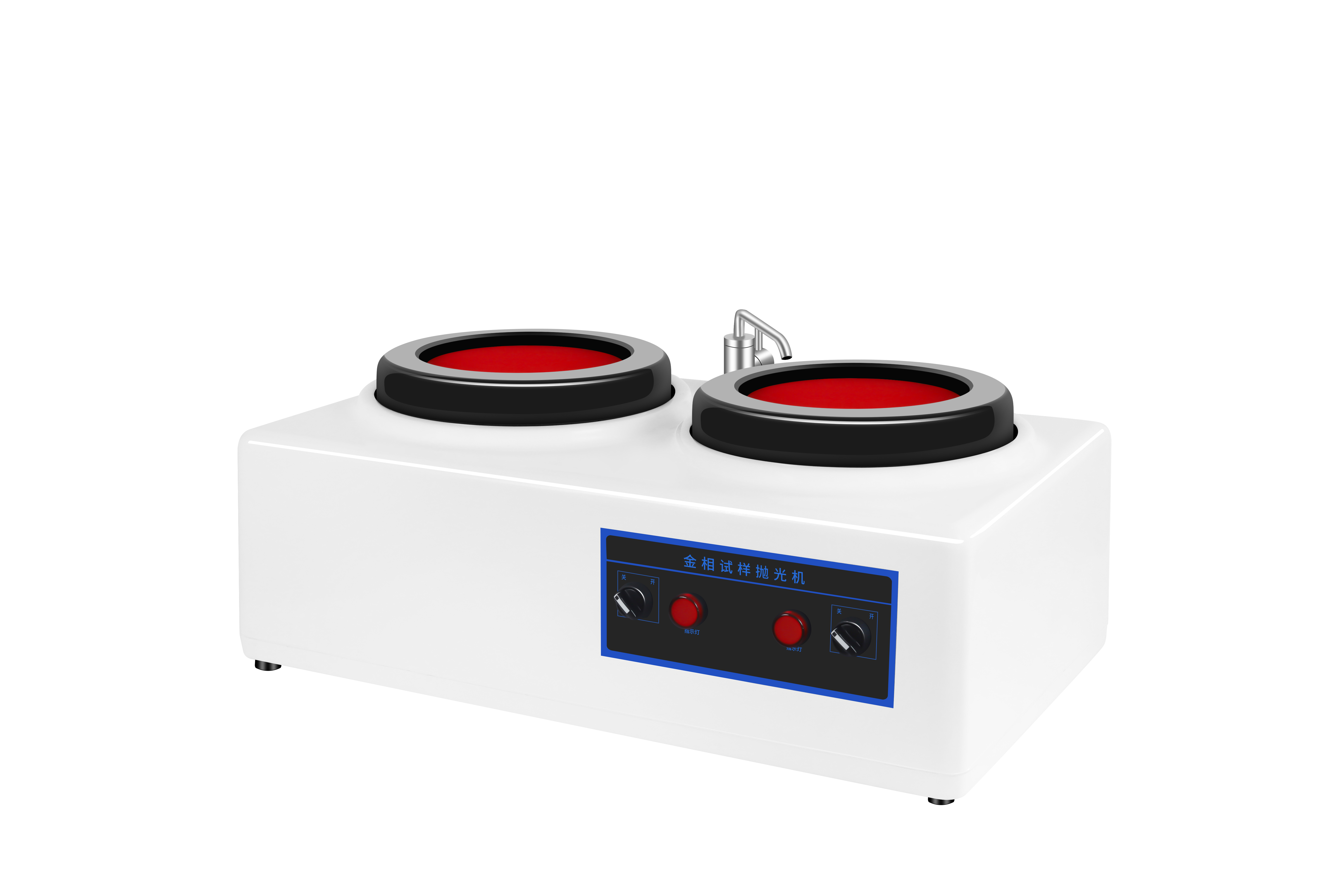

High-Efficiency Metallographic Sample Polishing Machine for Laboratories

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250401095418/Metallographic-polishing-machineP-2T-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250401095418/Metallographic-polishing-machineP-2T-2.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。
Product Specifications Reference
Product Name
P-2T
Disc diameter
φ203mm
Speed
1400 r/min(Customized 900r/min)
Input power
180W*2
Input voltage
220V, 50Hz
Number of polishing disc
2
Overall dimension
705*485*335mm
Packing size
833*618*494mm

Payment method

COMM
COMM
Product Details
Product Introduction
The Double Disc Manual Polishing Machine P - 2T, brought to you by Laizhou Jincheng Industrial Equipment Co., Ltd., is a game - changer in metallographic sample preparation. This machine is an indispensable asset for metallographic laboratories in factories and research institutions. Its stable rotation and low - noise operation ensure a smooth and efficient polishing process. The high - strength glass steel material shell guarantees long - term durability, even in harsh industrial environments. With easy - to - control switches and knobs, it simplifies both rough and fine polishing tasks. It can accommodate 203mm disc diameters and runs at a standard speed of 1400 r/min, with an option to customize to 900 r/min. Powered by dual 180W motors, it adheres to international standards, making it a top choice for various industries.
Advantages and features
1. Stable rotation and low noise for a smooth working environment.
2. Easy - to - control switches and knobs, enhancing user - friendliness.
3. High - strength glass steel material shell for long - lasting durability.
4. Suitable for both rough and fine polishing tasks.
5. Customizable running speed to meet different requirements.
6. Dual 180W motors for reliable power supply.
Application Scenario
Metallographic laboratories in factories and research units.
Mechanical manufacturing industry for sample preparation.
Metallurgy industry for analyzing metal structures.
Chemical processing industry for material surface treatment.
Product Parameters
Net weight: 21.6kg
Gross weight: 35.5kg
Type Specification Unit Quantity
Metallographic sample polishing machine P-2T SET 1
Dust cover SET 1
Polished velvet Ф200mm PCS 2
Dust cap PCS 2
Drain pipe PCS 1
Inlet pipe PCS 1
Product Instruction COPY 1
Product certificate COPY 1
Water retaining ring PCS 2
Aluminum buckle ring PCS 2
Power Cord PCS 1
