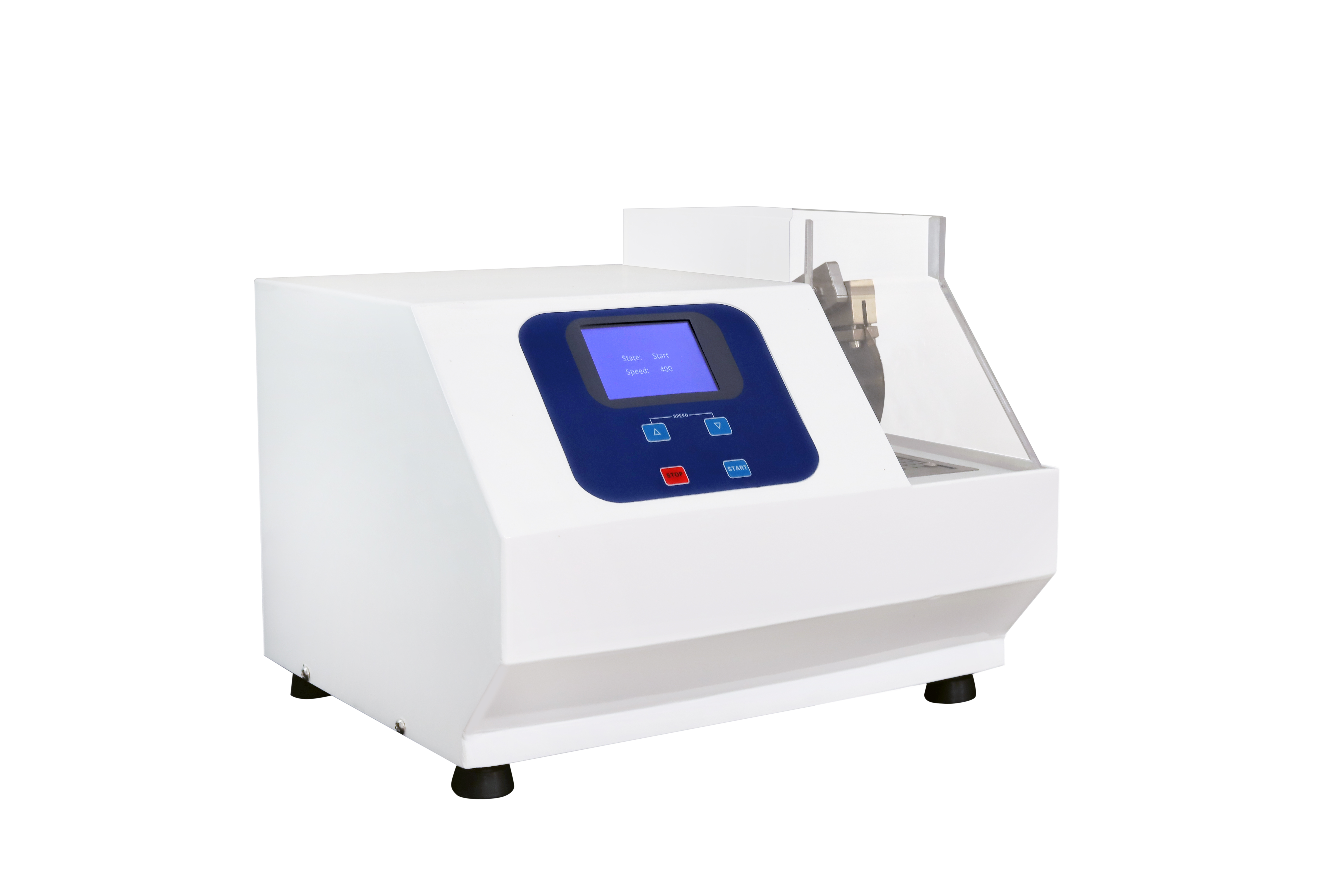

DS-600 Precision Cutting Machine for High-Value Crystal Materials

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250402154453/Metallographic-cutting-machineDS-600-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250402154453/Metallographic-cutting-machineDS-600-2.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。
Product Specifications Reference
Product Name
DS-600
Travel of mobile frame
25mm
Positioning accuracy
0.01mm
Spindle Revolutions
0-600r/min
Saw blade diameter
Φ100*0.4*12.7mm

Payment method

COMM
COMM
Product Details
Product Introduction
The Low Speed Precision Cutting Machine DS-600, brought to you by Laizhou Jincheng Industrial Equipment Co., Ltd., is a remarkable piece of equipment in the field of material cutting. Engineered to perfection, it offers excellent cutting capabilities for a wide range of materials, especially high - value artificial crystals. This machine stands out with its four adaptable fixtures, enabling users to position and cut objects precisely at the best angles. It is equipped with a limit switch for unattended operation and a high - accuracy spindle, which not only boosts productivity but also maintains high - quality results. The ability to fine - tune the horizontal feed position and the automatic halt after cutting add to its reliability. Meeting international standards, it provides consistent performance, accuracy, and efficiency, making it a top - notch choice for material testing and analysis.
Advantages and features

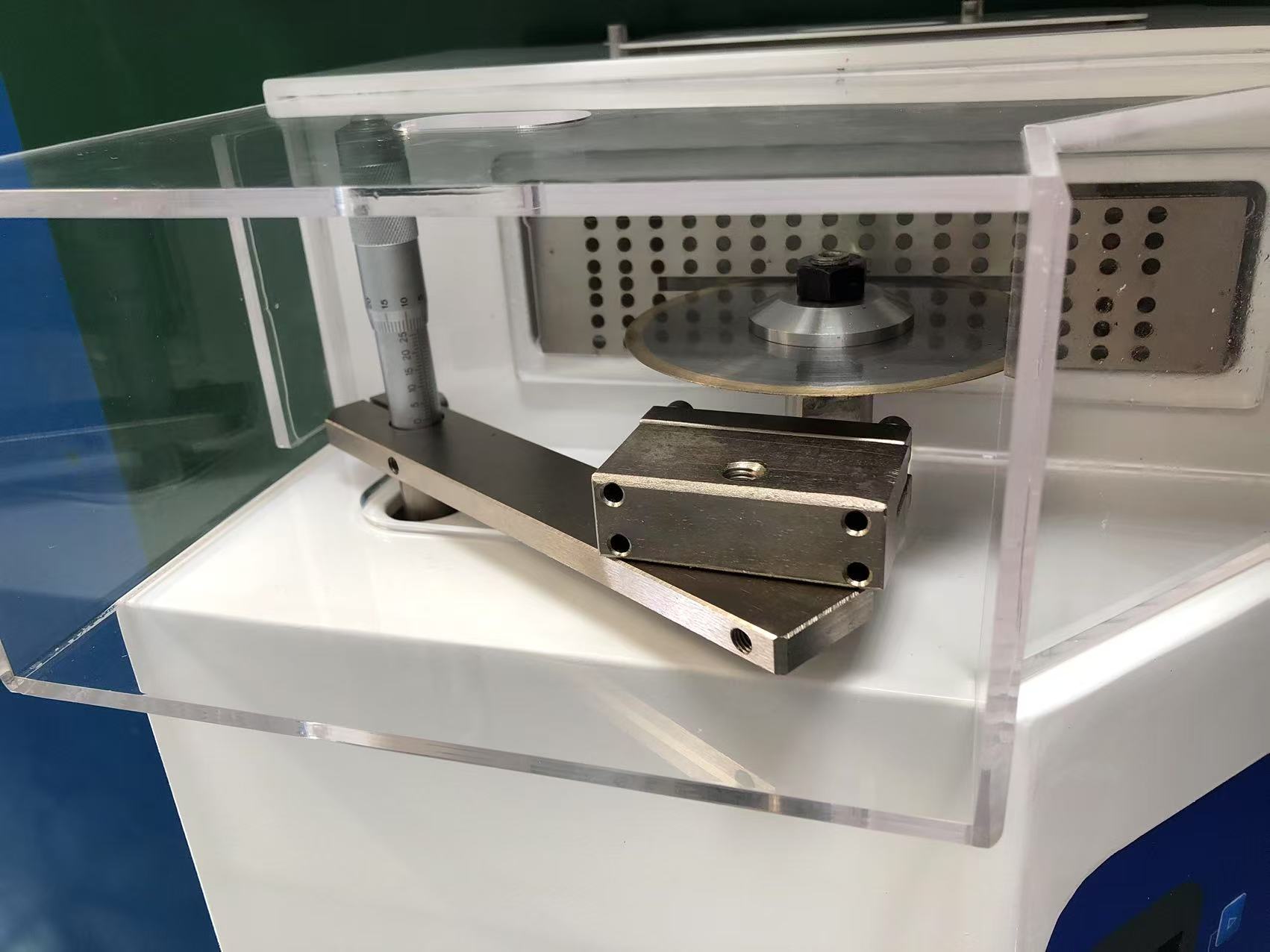

1. Four adaptable fixtures allow for optimal positioning and cutting angles, ensuring high precision in every cut.
2. Equipped with a limit switch for unattended operation, saving labor and time.
3. High - accuracy spindle functioning guarantees high - quality cutting results without sacrificing productivity.
4. Ability to finely tune the horizontal feed position and automatic halt after cutting enhance reliability.
5. Meets international standards, ensuring its quality and performance on a global scale.
Application Scenario
Laboratories: Ideal for scientific research and material analysis in various laboratories.
Research institutions: Helps researchers in preparing high - quality material samples for in - depth studies.
Industries requiring high - quality material preparation: Such as the electronics, jewelry, and crystal manufacturing industries.
Product Parameters
Max. cutting diameter: Φ30
Power: 50W
Voltage: 220V , 50Hz
Overall dimension: 392*330*310mm
Packing size: 650*530*540mm
Net weight: 19.35kg
Gross weight: 33kg
Type Specification Unit Quantity
Main machine DS-600 SET 1
Spanner 17-19mm PCS 1
Open-end wrench 20mm PCS 1
Fixture PCS 4
Diamond cutting blade 100*0.4*12.7mm PCS 1
Product manual COPY 1
Product certificate COPY 1
Power cord PCS 1
