High-Precision HLN-200 Leeb Hardness Tester for Accurate Material Testing

https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/67d923ec46c0fb5645dad7ee/67d936a5a09b7b35f9a6db40/20250328160938/Leeb-hardness-testerHLN-200-1.jpg
Specific Information
Please contact us

Refunds

If there is any problem with the goods, we will solve it for you in time。
Product Specifications Reference
Display Range
170~960HL
Accuracy
±6HL
Impact device
Standard D-Type impact device,optional and can be automatically identified Dc,Dc、C.DL.D+15G type impact device,
Test direction
All directions can be set
Displayer
3.9inch 240*320 dot matrix LCD display(touch screen operation),high brightness LED backlight
Menu Language
Chinese, English(Optional: German,French,ltalian,Spanish,Russian,Polish,Japanese, Korean etc.)

Payment method

COMM
COMM
Product Details
Product Introduction

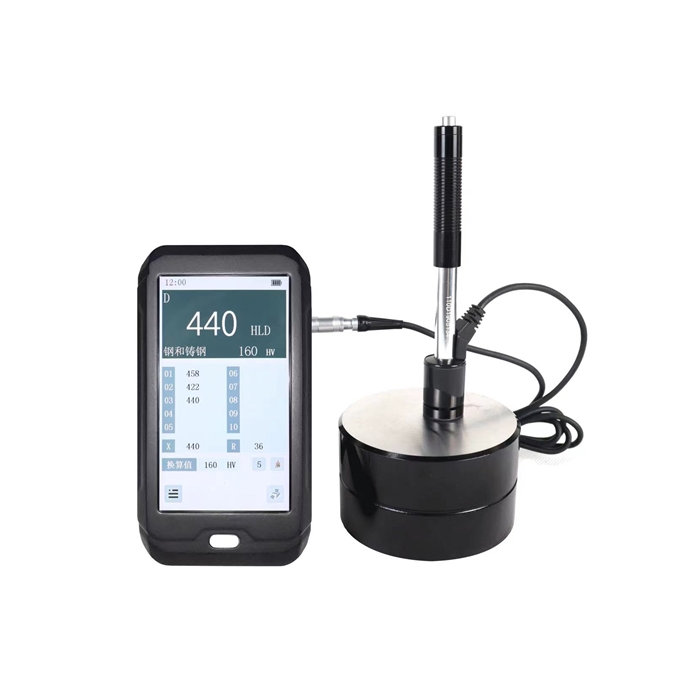

The HLN - 200 Leeb Hardness Tester, proudly presented by Laizhou Jincheng Industrial Equipment Co., Ltd., is a cutting - edge portable device engineered for accurate hardness testing of diverse materials. It features a user - friendly touch - screen interface, enabling operators to access test results promptly with ease. The tester comes with a standard high - precision D - type sensor that can automatically recognize other sensor types, offering great flexibility for various testing environments. With the capacity to store up to 800 sets of test data, it facilitates in - depth data analysis and record - keeping. Complemented by a miniature wireless printer and standard computer communication software, it streamlines the documentation and reporting process. The HLN - 200 adheres to international standards such as ASTM and ISO, ensuring reliable and accurate results for users worldwide.
Advantages and features
1. High - precision testing: Offers accurate hardness measurement results.
2. User - friendly interface: The touch - screen design simplifies operation and quick access to results.
3. Versatile sensor: The D - type sensor can automatically identify other types, suitable for different testing needs.
4. Large data storage: Capable of storing up to 800 sets of test data for comprehensive analysis.
5. Convenient documentation: Comes with a wireless printer and communication software for seamless reporting.
Application Scenario
Mechanical manufacturing: Ideal for testing the hardness of various mechanical parts to ensure product quality.
Metallurgy: Helps in assessing the hardness of metals during the production and quality control process.
Academic research: A valuable tool for researchers studying material properties and characteristics.
Product Parameters
Printer: Standard miniature wireless printerno connection required
Computer Communication Software: Standard configuration computer communication software, used to upload data to the computer, easy toanalyze and save.
Operating Woltage: 3.6V(1800mAhRechargeable Nl-MH batteries)
Charger: DC 5.5V/1A
Working Environment: Temperature: -20°C~+50°C Humidity:20%~85%
Storage Environment: Temperature: -30°C~+70°C Humidity:5%~95%
Dimensions: 135mm*83mm*24mm Host Part
Weight: 350g (Including D type sensor)
Standard Configuration: Display device(Host)、 D type impact device, standard hardness block, miniature wireless printercharger、small support ring、clean brush、 suitcase
